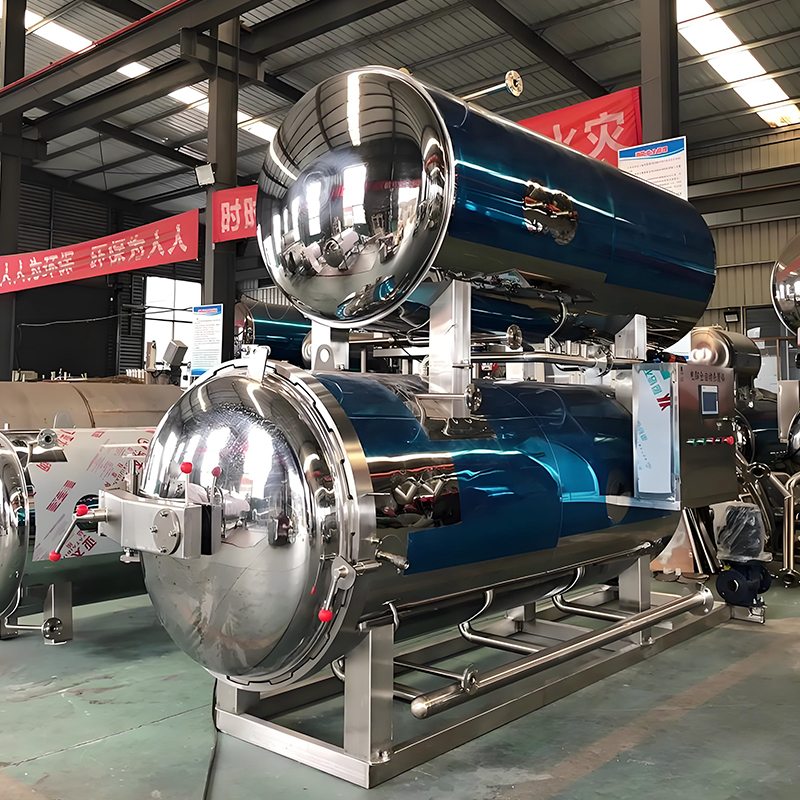

The UHT Spray Sterilizer is a high-temperature sterilization system designed for liquid foods, dairy products, juices, beverages, and condiments. It uses a high-temperature water spray process to uniformly heat and cool sealed products such as bottles, cans, or pouches. This ensures even temperature distribution, high heat efficiency, minimal product deformation, and complete sterilization.
Working Principle
After filling and sealing, products enter the spray sterilizer, where they undergo preheating, heating, sterilization, holding, and cooling in multiple spray zones. The system uses circulating hot water, heated by steam, which is sprayed evenly through nozzles onto the product surface for efficient heat transfer.
Process steps include:
1. Preheating – Warm water preheats the product to prevent thermal shock.
2. Heating – Hot water spray rapidly raises the temperature to the set point (95–135°C).
3. Holding – The product is maintained at the sterilization temperature for the required time.
4. Cooling – Cold or chilled water spray gradually cools the product.
5. Discharge – The product is conveyed out for packaging or storage.
System Components
● Sterilization Tank – Multi-layer spray structure for uniform heat distribution.
● Hot Water Circulation System – Includes heater, pump, and temperature control valves.
● Cooling Section – Multi-stage cooling to prevent product deformation or bursting.
● Conveyor System – Variable frequency drive for smooth product movement.
● PLC Control System – Fully automatic control of temperature, time, and flow.
● Safety Protection System – Pressure and temperature safety controls, alarms, and backflow protection.
Main Features
● Uniform Heating – Multi-point spray ensures even temperature distribution without dead zones.
● Complete Sterilization – Precise temperature control ensures full microbial inactivation.
● Energy Efficient – Hot water circulation system for high thermal utilization.
● User Friendly – PLC control with recipe storage for different products.
● Safe and Reliable – Equipped with multiple protection systems.
● Easy Maintenance – Modular design compatible with CIP cleaning system.
Technical Parameters (Customizable)
| Applicable Products | Bottled, Canned, or Pouch-packed Beverages, Dairy, Condiments |
| Sterilization Temperature | 95–135°C |
| Holding Time | 30 seconds–30 minutes |
| Processing Capacity | 500–10,000 bottles/hour (customizable) |
| Material | SUS304 / SUS316L |
| Control Mode | Fully automatic (PLC + Touch screen) |
| Heating Medium | Steam / Hot Water |
| Cooling Medium | Circulating Cold Water / Chilled Water |
| Heat Recovery Rate | ≥85% |
| Cleaning Method | Automatic CIP Cleaning System |
Sterilization Temperature
● 110–135°C spray sterilization
● Optional ultra-high temperature: 135–142°C
Heating Medium
● High-temp circulating water
● Saturated steam indirect heating
● Optional steam-water mixing station
Cooling Method
● Circulating cooling water
● Ice water / chilled water
● Multiple cooling sections optional
Processing Capacity
● 500 – 10,000 bags/bottles per hour
(depending on product and packaging type)
Packaging Compatibility
● PET bottles
● HDPE bottles
● Aluminum laminated pouches
● Soft bags / stand-up pouches
● PP cups / composite packaging
Temperature Control
● PLC-controlled spray temperature
● Temperature accuracy: ±0.5°C
● Multi-point temperature feedback
Pressure Control
● Adjustable spray pressure
● Product-friendly non-vibration system
● Suitable for fragile or soft packaging
Power Supply
● 380 V / 220 V, 50/60 Hz
Material & Hygiene Standards
● Contact Parts: SUS316L
● Frame Structure: SUS304
● Spray Pipes: Seamless stainless steel tubes
● Seals: High-temperature EPDM / PTFE
● Internal Surface Finish: Ra ≤ 0.6 μm
● External Surface Finish: Brushed stainless steel
Compliance
● 3A / FDA food-grade hygiene
● CE certification optional
● GMP standard layout
● Plates, pipes, and tank welds meet ASME / DIN standards
Applications
● Dairy products: milk, yogurt, condensed milk.
● Beverages: juice, tea drinks, coffee drinks.
● Condiments: soy sauce, vinegar, mixed seasonings.
● Canned and functional drinks.
● Pharmaceutical and health products: oral liquid, nutrient solutions.
Product Features & Performance
① High-Efficiency UHT Spray Sterilization
● Rapid heat transfer through high-temp circulating water
● Uniform spray pattern ensures complete sterilization
● Treats both product and packaging at the same time
② Wide Packaging Compatibility
● Works with:
● Bags, pouches, cups
● PET/HDPE/PP bottles
● Laminated foil packs
● Aseptic and high-temp packaging materials
● No deformation, no product damage.
③ Precise Temperature & Pressure Control
● PID-controlled heating
● Multi-section temperature zones (preheat → UHT → cooling)
● High-accuracy sensors for consistent sterilization
④ Adjustable Spray Intensity
● Gentle spray for yogurt and dairy drinks
● Strong spray for sauces or condiments
● Avoids product or package damage
⑤ Energy-Efficient Circulating System
● Heat recovery available
● Low steam consumption
● Optimized water cycle design reduces energy cost
⑥ Hygienic & Easy to Maintain
● Fully stainless design
● Simple structure, fewer wearing parts
● CIP-compatible system
● Easy to access for cleaning and inspection
⑦ Suitable for Multiple Products
● Handles liquids with:
● Low viscosity
● Medium viscosity
● Particulates (depending on packaging)
Optional Configurations
● PLC + HMI automatic control system
● Steam-water mixing unit
● Heat recovery module
● Multiple spray sections (3–6 zones)
● Flow meters, pressure sensors, and automatic alarms
● Data logging and batch report export
● CIP/SIP integration
● Explosion-proof configuration for special industries
