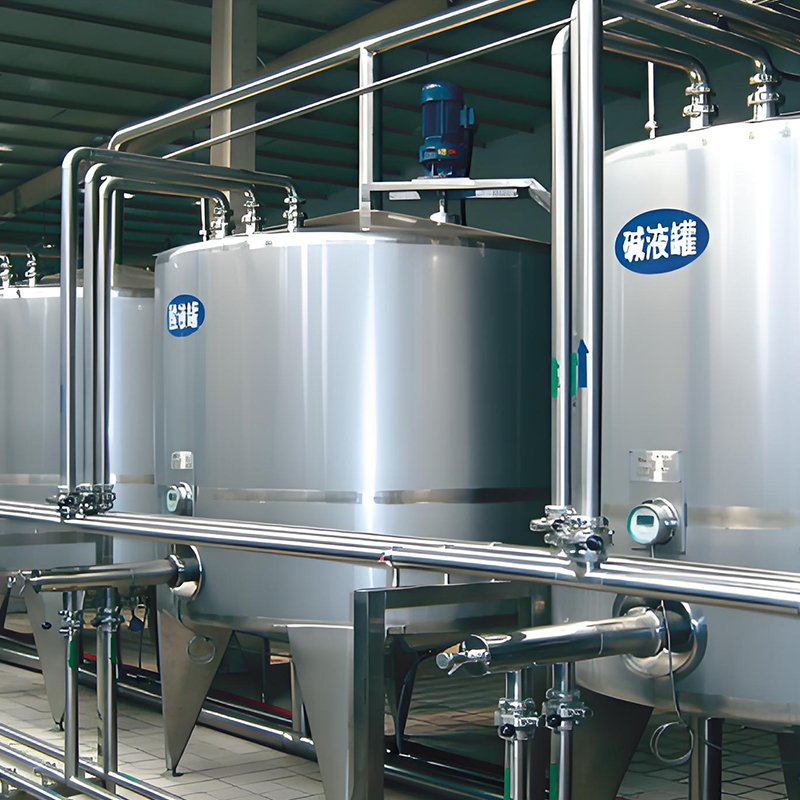

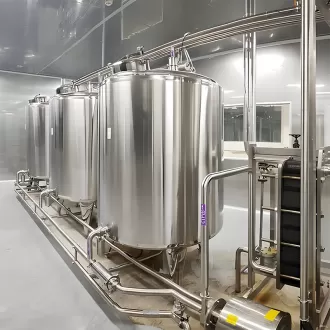

Split-Type Fully Automatic CIP System (Clean-in-Place System)

Split-Type Fully Automatic CIP System | Milk Sterilization and Cleaning Equipment

The Split-Type Fully Automatic CIP (Clean-in-Place) System by YME provides advanced, hygienic, and fully automated milk sterilization and cleaning equipment solutions for dairy, yogurt, beverage, and liquid food processing plants. Designed for efficiency, consistency, and safety, this system ensures that your production lines comply with international food safety standards while reducing labor and operating costs.

Trusted by dairy manufacturers worldwide, YME CIP systems are fully customizable to meet the needs of small, medium, and large-scale operations.

Key Features & Benefits

• Fully Automatic Operation: PLC-controlled cleaning cycles handle feeding, heating, circulation, discharge, and recycling. Operators simply select the cleaning program.

• Split-Type Modular Design: Independent tanks and control units allow flexible installation, easy maintenance, and space-saving layouts.

• Hygienic Design: All product-contact parts are made from food-grade stainless steel (SUS304 / SUS316L) with no dead angles, compliant with GMP, FDA, and 3-A standards.

• Energy & Resource Efficiency: Water and solution recycling reduce consumption and lower operating costs. Optional steam/heat recovery available.

• Multi-Stage Cleaning Programs: One-stage, two-stage, or three-stage programs customizable by product type and contamination level.

• Precise Temperature & Concentration Control: Built-in temperature sensors and conductivity monitors automatically adjust cleaning parameters for consistent results.

• User-Friendly Interface: HMI touch-screen displays real-time cleaning status, temperature, flow rate, pressure, and alarms.

System Components

Working Principle

The fully automatic system completes the cleaning cycle with minimal operator intervention:

1. Pre-Rinse: Removes surface residues using warm or recycled water.

2. Alkaline Wash: Circulates alkaline solution to remove fats and proteins.

3. Hot Water Rinse: Flushes residual alkali and preheats equipment.

4. Acid Wash: Removes inorganic scale and mineral deposits.

5. Final Rinse: Uses pure water to eliminate residues.

6. Disinfection (Optional): Thermal or chemical sterilization for maximum hygiene.

Technical Parameters (Customizable)

• CIP Pumps: Sanitary centrifugal or pipeline pumps

• Typical flow rate: 5–40 m³/h

• Head: 5–30 m

• Heating Method: Steam heating or electric heating

• Control Accuracy:Temperature: ±0.5°C

• Operating Pressure: Atmospheric cleaning; pump pressure per system requirement

• Cleaning Programs: Up to 10+ customized CIP recipes

• External Cover: Stainless steel panel (optional mirror finish or powder coating)

Material & Hygiene Standards

• Contact Parts: SUS316L (standard) or SUS304

• Non-Contact Parts: SUS304 or carbon steel with stainless steel cladding

• Seals: Food-grade EPDM / PTFE

• Surface Finish:

• Internal tank: mirror-polished, Ra ≤ 0.4 μm (optional Ra ≤ 0.2 μm)

• External surface: matte or mirror finish

• Welding Standard:

• Full argon welding, smooth and sanitary welds, no dead corners

• Pipelines: Seamless sanitary stainless steel tubing (SUS304 / SUS316L)

• Compliance:

• GMP, FDA, 3A

• Design available per ASME / DIN / GB standards

• No chemical contamination: All components meet food-grade safety requirements

Advantages

• Thorough cleaning without disassembly, saving labor costs

• Fully automatic operation ensures consistent hygiene and quality

• Energy and chemical savings through solution recycling

• Modular split-type design allows flexible installation for any plant layout

• Compliant with international food safety standards (GMP, FDA, 3-A)

• Compatible with complex process equipment, valves, and spray balls

Applications

Ideal for dairy and beverage processing plants, including:

• Milk and yogurt processing

• Beverage and juice production lines

• Honey and liquid food manufacturing

• Pharmaceutical and bio-liquid production requiring high hygiene standards

 ① Fully Automatic Cleaning Cycles

PLC + HMI interface allows one-button operation:

Pre-rinse → Alkaline wash → Hot water → Acid wash → Final rinse → Drain/Recovery.
All parameters are programmable.

② Accurate Temperature & Concentration Control

Temperature controlled by PID

Conductivity sensor for automatic detergent concentration adjustment

Improved cleaning consistency and reduced chemical waste

③ High Cleaning Efficiency

Strong turbulence flow ensures deep cleaning of tanks and pipelines

Optimized recirculation loop for maximum cleaning coverage

Compatible with spray balls, valves, and complex process equipment

④ Energy Saving & Chemical Recovery

Optional solution recovery system

Reduced water and chemical consumption by up to 30–50%

Steam/heat recovery optional to minimize energy usage

⑤ Modular Split-Type Design

Tanks, heating units, pump station, and control cabinet are independent modules

Easy installation and maintenance

Flexible layout for limited plant space

⑥ Integration with Production Line

Can link with production PLC/MES

Automatic switching between production and CIP modes

Automatic data recording & traceability

⑦ Safety & Monitoring Functions

Low-level protection

Over-temperature alarms

Pump overload detection

Real-time system status display

Optional remote monitoring and data export

Request a Quote

Upgrade your dairy or beverage production line with a fully automatic, hygienic, and energy-efficient CIP system.

Contact YME Today To:

• Request a Quote

• Send Drawings for a Custom Design

• Discuss Plant Layout & Requirements with Our Engineers
