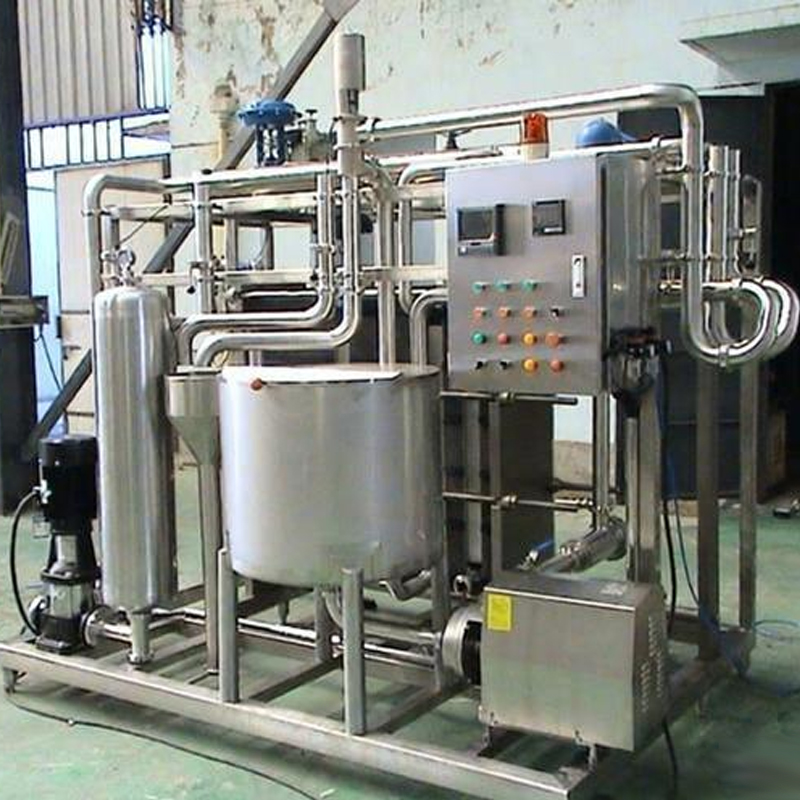

The Pasteurization, Yogurt, and Ultra-High Temperature (UHT) Sterilizer (Three-in-One) is a multifunctional liquid food sterilization device that integrates pasteurization, yogurt heating and fermentation pretreatment, and ultra-high temperature sterilization. It is widely used in dairy products (milk, yogurt, flavored milk), beverages, and juices. With features of high efficiency, energy saving, and precise temperature control, it is ideal for small and medium-sized dairy processing plants or pilot production lines.
YME’s Pasteurization and UHT Sterilizer is an industrial thermal processing solution designed for milk sterilization and cleaning equipment applications, yogurt processing, beverage production, and overall liquid food hygiene. By integrating pasteurization, yogurt heat treatment, and ultra-high temperature (UHT) sterilization into one flexible system, this equipment enables dairy and beverage manufacturers to maintain reliable food safety compliance, consistent product quality, and efficient production performance.
This system is widely used in milk processing plants, yogurt factories, beverage production lines, and pilot dairy facilities. As part of a complete milk sterilization and cleaning equipment solution, it can be customized to match different product characteristics, production capacities, and international hygiene standards, while ensuring seamless integration with CIP cleaning systems and downstream processing lines.
Main Functions
1. Pasteurization: Heats milk to 72–75°C for 15–20 seconds to effectively eliminate pathogenic bacteria while preserving nutrients and flavor.
2. Yogurt Pretreatment and Fermentation: Heats milk to 85–90°C for 5–10 minutes to denature whey proteins and improve yogurt texture. Includes cooling and constant temperature control for fermentation.
3. Ultra-High Temperature (UHT) Sterilization: Suitable for flavored milk, milk beverages, and juices. Heats to 90–105°C for 10–30 seconds to destroy heat-resistant bacteria while maintaining product quality.
Features
● Three-in-One Design: Integrates pasteurization, yogurt heating, and UHT sterilization in one unit, saving space and cost.
● High-Efficiency Heat Exchange: Uses tubular or plate heat exchangers for uniform heating and low energy consumption.
● Accurate Temperature Control: Equipped with an automatic temperature control system for precise regulation of temperature, flow, and holding time.
● Easy Operation: Touch-screen control allows mode switching between Pasteurization, Yogurt, and UHT modes.
● Energy Saving: Features heat recovery design and supports CIP automatic cleaning systems.
● Hygienic and Compact: Made of food-grade stainless steel (SUS304/316L), meeting dairy hygiene standards.
Working Principle
The product (such as milk) is pumped into the heating system and passes through different sections: preheating, holding, cooling, and outlet. Operators can select different working modes according to the production process: Pasteurization (72–75°C / 15–20s), Yogurt (85–90°C / 5–10min), or UHT (90–105°C / 10–30s).
Applications
● Pasteurized milk production
● Yogurt and fermented milk processing
● Flavored milk and milk beverages
● Juices, tea drinks, and plant-based beverages
● Educational, laboratory, and pilot dairy production lines
Technical Parameters (Customizable)
| Processing Capacity | 300–5000 L/h (customizable) |
| Sterilization Temperature | 65–105°C |
| Heating Medium | Steam / Hot water |
| Control Type | Fully automatic / Semi-automatic |
| Material | SUS304 / SUS316L |
| Cleaning System | CIP automatic cleaning system (optional) |
Processing Functions
● Pasteurization: 65–95°C
● Yogurt incubation: 38–45°C (stable ±0.5°C)
● UHT sterilization: 120–140°C (steam or superheated water)
Capacity Options
● 100 L / 200 L / 300 L / 500 L / 1000 L / 2000 L (custom available)
Heating Methods
● Steam heating (standard)
● Electric heating (optional)
● Hot water circulation system
Cooling Method
● Plate heat exchanger / tubular heat exchanger
● Chilled water or glycol cooling
Control Options
● Semi-automatic
● Fully automatic (PLC + HMI touchscreen)
Power Supply
● 380 V / 220 V, 50/60 Hz
Temperature Control
● PID temperature regulation
● Accuracy ±0.5°C
System Pressure
● Designed for pressure heating & vacuum cooling (optional)
Connections
● Tri-Clamp sanitary fittings
● Optional flow meter, pressure gauges, and data logging
Contact Materials: SUS316L stainless steel (standard), SUS304 optional
Surface Finish: Internal mirror polishing, Ra ≤ 0.4 μm
Seals: Food-grade EPDM / PTFE, resistant to high temperature and chemicals
Pipelines: Seamless sanitary stainless steel tubing
Welding: Full argon welding with smooth, hygienic internal surfaces
Compliance: GMP, FDA, 3-A standards; design available per ASME / DIN / GB
Designed to meet international dairy and beverage hygiene regulations, ensuring safe and compliant production for global markets.
Advantages
● Multi-purpose: suitable for various dairy processes.
● Precise temperature control ensures quality and nutrition.
● Hygienic and safe with food-grade materials.
● Energy-efficient with high heat recovery rate.
● User-friendly with simple mode switching and maintenance.
Three-in-One System Design
Combines pasteurization, yogurt heating, and UHT sterilization in a single unit, reducing equipment investment, floor space, and installation complexity.
Flexible Heat Exchange Configuration
Available with plate heat exchangers, tubular heat exchangers, or combined solutions to match product viscosity and processing requirements.
Precise Temperature & Time Control
PID-controlled heating system ensures accurate temperature regulation (±0.5°C), delivering consistent sterilization results batch after batch.
Energy-Efficient Heat Recovery
Optimized heat recovery design significantly reduces steam and energy consumption, lowering long-term operating costs.
Hygienic, CIP-Compatible Design
Fully compatible with automatic CIP systems, minimizing downtime and ensuring reliable milk sterilization and cleaning performance.
User-Friendly Operation
Semi-automatic or fully automatic PLC + HMI control options allow quick mode switching between pasteurization, yogurt, and UHT processes.
This Pasteurization and UHT Sterilizer is commonly used in:
Milk and dairy processing plants (pasteurized milk, ESL milk, yogurt)
Beverage and juice production lines
Plant-based drink factories (soy milk, almond milk, oat milk)
Liquid food and nutritional beverage processing
Educational, laboratory, and pilot dairy production lines
YME provides customized pasteurization and UHT sterilizer solutions based on your production requirements:
Capacity and product-specific configuration
Integration with CIP systems, homogenizers, and aseptic filling machines
PLC and data recording options for traceability
Layout design support based on factory drawings
Steam or hot water supply
Cooling or chilled water connection
Electrical power and control wiring
Drainage and CIP interface
Load milk or liquid product
Select processing mode (Pasteurization / Yogurt / UHT)
Automatic heating and holding
Optional fermentation stage
Cooling and discharge
CIP cleaning after production
Regular inspection of seals and pipelines
Calibration of temperature sensors
Periodic cleaning and sanitization
Easy-access design for quick inspection and servicing
Looking for a reliable Pasteurization and UHT Sterilizer for your dairy or beverage production line?
Contact YME today to:
Discuss your product type and capacity requirements
Receive a customized technical solution
Get a quotation and layout recommendation
