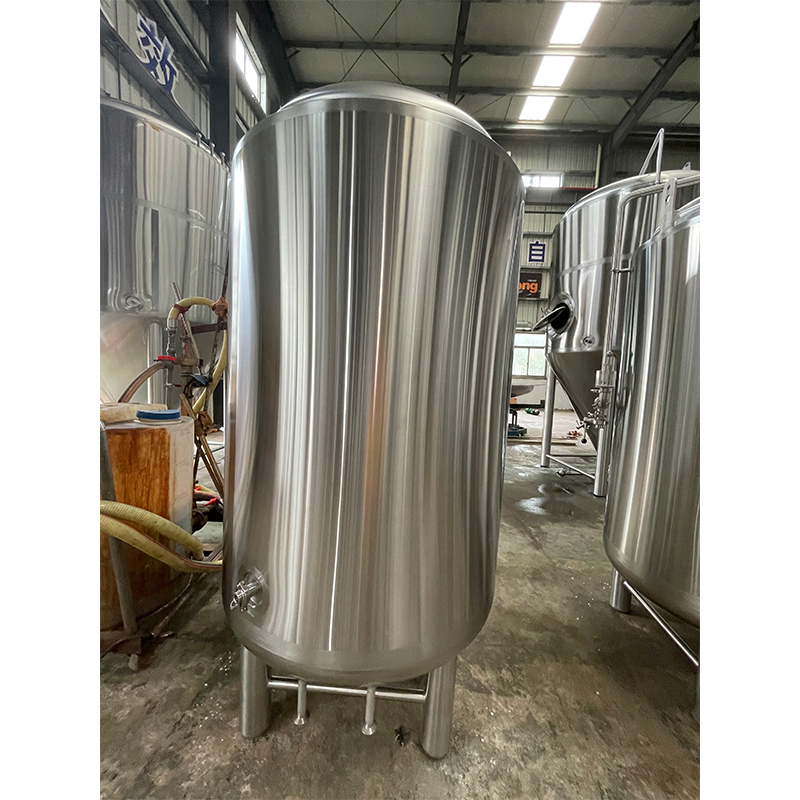

The Single-Layer Storage Tank is a high-quality stainless steel vessel designed for the storage of liquid materials in the food, beverage, dairy, brewing, and pharmaceutical industries. With a simple yet durable structure, this tank ensures sanitary storage, easy cleaning, and long service life. It is suitable for the storage of water, juice, milk, beer, syrup, and other liquid products that do not require thermal insulation or heating.
The tank is constructed using high-grade stainless steel (SUS304 or SUS316L) with smooth internal surfaces and sanitary welding, preventing contamination and ensuring product purity. The tank can be designed in vertical or horizontal configuration, with customizable volume, fittings, and accessories to meet different production requirements.
Main Features
● High-Quality Construction
Made of food-grade stainless steel (SUS304 / SUS316L), corrosion-resistant, hygienic, and compliant with GMP and food safety standards.
● Sanitary Design
The internal surface is polished to Ra ≤ 0.4 μm to ensure no residue or bacterial growth. The tank is equipped with CIP cleaning nozzles for easy integration with automatic cleaning systems.
● Flexible Customization
Available in various capacities (100 L – 50,000 L) and configurations with options for manholes, sight glasses, level gauges, agitators, and outlet valves.
● Easy Operation and Maintenance
Simple structure with no thermal jacket or insulation layer, ensuring lower cost, easy cleaning, and minimal maintenance.
● Optional Configurations
Can be combined with cooling jackets, pressure-resistant covers, or mixers depending on process requirements.
Technical Parameters (Customizable)
| Item | Specification |
| Capacity | 100 L – 50,000 L |
| Material | SUS304 / SUS316L |
| Structure | Vertical / Horizontal |
| Surface Finish | Internal Ra ≤ 0.4 μm, External Matt / Mirror Polished |
| Working Pressure | Atmospheric |
| Top Cover | Open / Closed type |
| Accessories | Manhole, CIP spray ball, Level gauge, Vent valve, Outlet valve |
| Connection Type | Sanitary quick coupling / Tri-clamp |
| Design Standard | GB / ASME / DIN |
Tank Capacity
● Standard sizes: 100 L – 50,000 L
● Custom volumes available
Structure
● Single-wall, atmospheric tank
● Optional: top cover closed/open type
● Optional: conical, flat, or dished bottom design
Operating Conditions
● Working temperature: 0–100°C (depending on material)
● Working pressure: atmospheric
● Designed for static storage
Connections
● Tri-Clamp / sanitary quick-connect
● Optional: flanged connections
● CIP spray ball (optional)
Manhole Options
● Top manhole (round or oval)
● Side manhole (optional for large tanks)
Outlet
● Bottom outlet: threaded / tri-clamp / valve assembly
● Optional: diaphragm valve or butterfly valve
Surface Treatment
● Internal: Ra ≤ 0.4–0.6 μm
● External: matte, mirror-polished, or sandblasted finish
Material & Hygiene Standards
Material
● Product-contact parts: SUS304 or SUS316L
● Structure parts: SUS304
● Seals: Food-grade silicone, EPDM, or PTFE
● Legs/supports: Stainless steel tubular legs with adjustable feet
Welding & Polishing
● Full TIG argon welding
● Smooth welds without sanitary dead corners
● Interior polished to food-grade hygiene level
Compliance
● FDA, 3A, GMP food hygiene standards
● Design per ASME, DIN, or GB requirements
Advantages
● Hygienic, durable, and corrosion-resistant structure
● Suitable for a wide range of liquid storage applications
● Simple design for easy operation and maintenance
● Customizable to specific production requirements
● Compatible with CIP and SIP systems
Applications
● Water storage tank
● Milk and dairy liquid storage
● Beverage and juice intermediate storage
● Brewing (wash water, wort storage)
● Chemical and cosmetic liquid storage
● Syrup, brine, and extract storage
