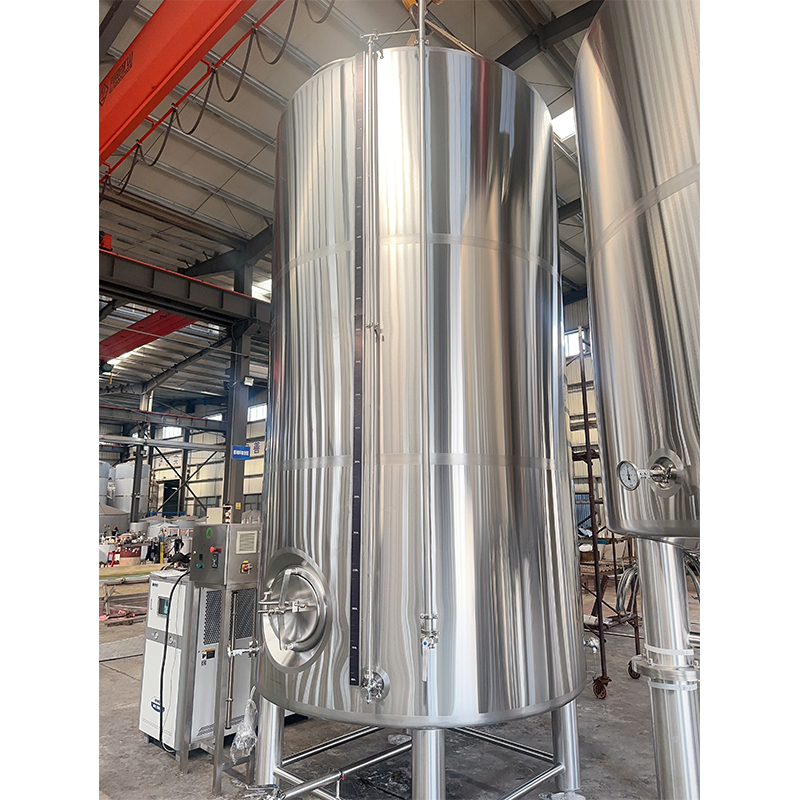

The Single-Layer Mixing Tank is a versatile and high-efficiency mixing vessel designed for blending, dissolving, and homogenizing various liquid products in the beverage, dairy, brewing, food, and pharmaceutical industries.
Constructed with high-quality stainless steel (SUS304 / SUS316L), the tank features a single-wall structure suitable for processes that do not require heating or cooling. Equipped with an agitator, it ensures uniform mixing of raw materials, improving product consistency and production efficiency.
The tank design complies with GMP and food-grade hygiene standards, with smooth internal surfaces, easy cleaning, and optional integration with CIP systems.
Main Features
● Efficient Mixing Performance
Equipped with a top-mounted or side-mounted agitator (paddle, anchor, turbine, or propeller type) to meet different process requirements such as stirring, dissolving, or homogenizing.
● Hygienic Construction
The tank is made of SUS304 / SUS316L with a mirror-polished inner surface (Ra ≤ 0.4 μm), ensuring no residue accumulation and easy cleaning.
● Flexible Configuration
Available with various capacity options (100 L – 20,000 L) and accessories such as manhole, level gauge, sight glass, thermometer, and outlet valve.
● Simple and Durable Design
Single-layer structure without insulation or jacket—easy to operate, cost-effective, and ideal for standard liquid mixing processes.
● Optional Features
Can be equipped with variable-speed drive (VFD), bottom homogenizer, load cell weighing system, or control panel for process monitoring.
Technical Parameters (Customizable)
| Item | Specification |
| Capacity | 100 L – 20,000 L |
| Material | SUS304 / SUS316L |
| Structure | Single-layer cylindrical tank |
| Agitator Type | Paddle / Anchor / Propeller / Turbine |
| Agitator Speed | 36–85 rpm (customizable, with VFD control) |
| Surface Finish | Internal Ra ≤ 0.4 μm, External Matt / Mirror Polished |
| Working Pressure | Atmospheric |
| Accessories | Manhole, CIP spray ball, Level gauge, Vent valve, Outlet valve, Thermowell |
| Control Mode | Manual / Semi-automatic / PLC optional |
| Design Standard | GB / ASME / DIN |
Tank Design
● Single-wall stainless steel structure
● Open or closed top lid
● Flat, conical, or sloped bottom
● Support legs with adjustable feet
Agitator Options
● Top-mounted, side-mounted, or bottom-mounted
● Types:
o Paddle
o Anchor
o Propeller
o Turbine
o High-shear mixer (optional)
● Mixing speed: fixed or VFD variable speed (10–150 rpm or customized)
Operating Conditions
● Temperature range: 0–100°C
● Working pressure: atmospheric
● Suitable for low- to medium-viscosity liquids
Connections
● Inlet/outlet tri-clamp fittings
● Manhole (round/oval) optional
● Sampling valve optional
● CIP spray ball optional
Surface Treatment
● Internal: Ra ≤ 0.4–0.6 μm
● External: matte, mirror, or brushed finish
Material & Hygiene Standards
● Product-contact material: SUS304 or SUS316L
● Structural material: SUS304
● Seals/gaskets: Food-grade silicone, EPDM, or PTFE
● Agitator shaft & blades: SUS304/316L
● Welding: TIG argon welding, smooth internal welds
● Piping: Seamless sanitary stainless steel
Compliance
● FDA, 3A, GMP
● Designed per ASME / DIN / GB standards
Advantages
● High mixing efficiency and product uniformity
● Hygienic and food-grade design
● Simple structure, easy cleaning and maintenance
● Cost-effective solution for non-heating processes
● Customizable configurations to meet diverse applications
Optional Configurations
● VFD speed control for agitator
● High-shear emulsifier or homogenizer
● CIP spray ball & pipeline
● Load cells for weighing
● Level gauge (magnetic or electronic)
● Temperature sensors
● Sight glass with LED light
● Pressure/vacuum relief valve
● Heating/cooling ports for upgrade to jacketed tank
● Skid-mounted mixing platform
Applications
● Beverage and juice mixing
● Dairy product preparation (milk, flavored milk, yogurt base)
● Brewing auxiliary material blending
● Syrup, sauce, and liquid ingredient preparation
● Pharmaceutical and cosmetic liquid formulation
Send us your request for quotation and we will generate a quote with everything you need for your brewing equipment.
